GI CONDUITS



Hot Dipped Galvanized Conduits

BHARAT INDUSTRIES manufactured Hot Dipped Galvanized Conduits are engineered for the most demanding installs, allowing superior protection to electrical infrastructure for decades to come. The, ISI Marked, precision welded range of electrical conduits, are used in places where a seamless electrical raceway is required that is resistant to corrosion, provides high tensile strength and makes future wiring changes easy. The first galvanize facility in India to be dedicated exclusively for the electrical fittings was initiated in 1997. High Protection coating of the pipe is done by Hot Dipped Galvanize automatic plant. The Zinc is coated on both sides (i.e. inside and outside) of the tube.

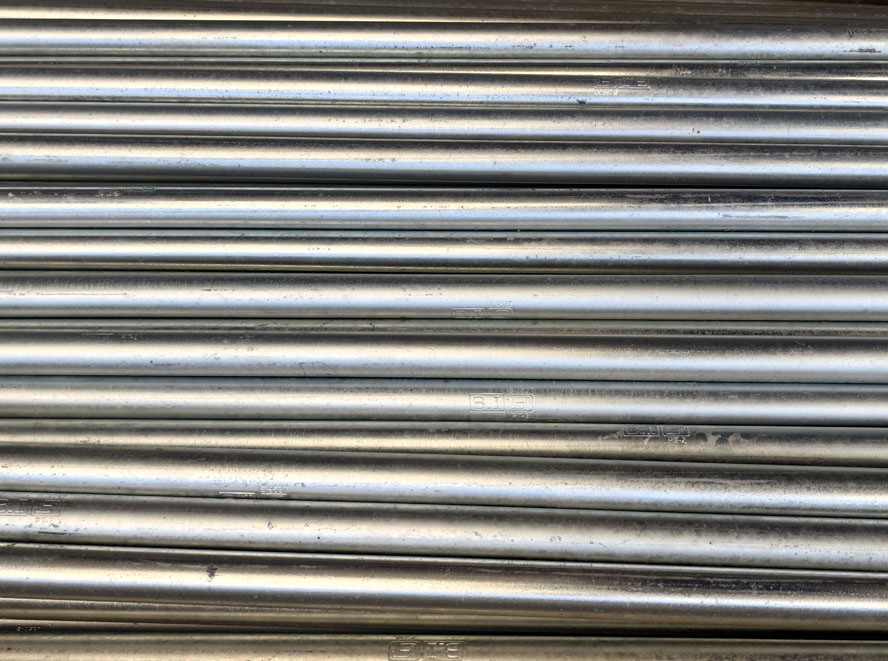

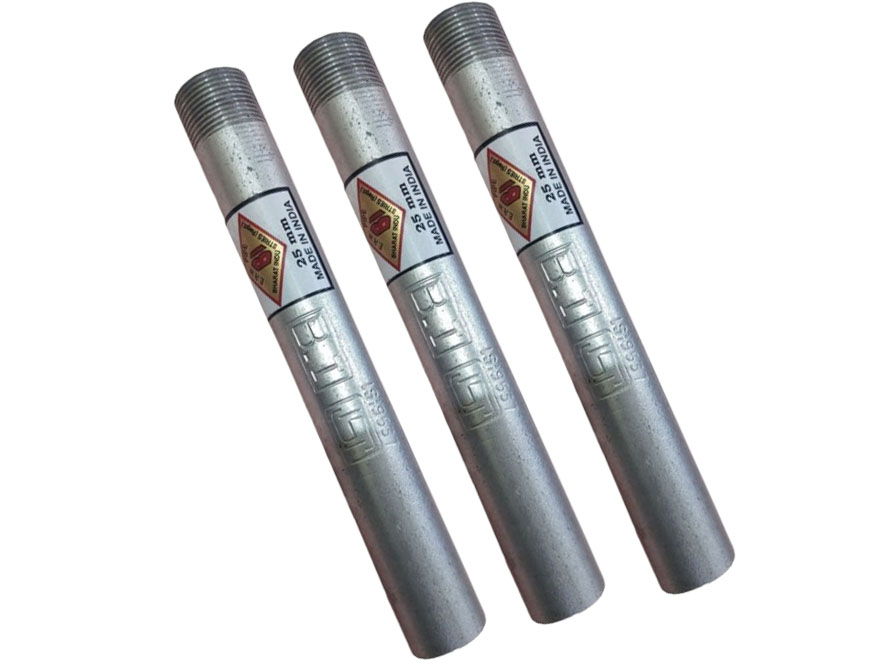

Product Image 1 Product Image 2
❮ ❯

Product Specification

NOMINAL SIZE
OF CONDUITS (In mm) 		OUTSIDE DIAMETER
(In mm) 		TOLERANCE OF OUTSIDE
DIAMETER (In mm) 		DIAMETER (In mm) WALL THICKNESS OF
CONDUIT PIPES (In mm)
20 20 -0.3 1.4 to 1.8
25 25 -0.4 1.4 to 1.8
32 32 -0.4 1.4 to 1.8
40 40 -0.4 1.6 to 2.2
50 50 -0.5 1.6 to 2.2

Salient Features

  • ISI Mark and Trademark (BI/BHARAT INDUSTRIES) is Embossed at intervals of every meter.
  • Hot Dipped Galvanized on inner and outer surfaces of Conduit to provide excellent resistance to corrosion.
  • Suitable for harsh environments for indoors, outdoors, concealed or underground installations.
  • Each Conduit is threaded on both ends and a coupling is attached at one end for smooth installation.
  • Shielding of electronic equipment from Electromagnetic Interference.
  • Resistance to mechanical and impact stress.
