MS CONDUITS



Mild Steel Conduits

BHARAT INDUSTRIES Range of Conduits are manufactured on fully automated plant by high frequency welding system which ensures perfect wielding and the minimum required inside Weld Bead to ease the wire pulling. ERW Stove Enamelled MS Conduits provide safety for electrical conductors because it features great tensile strength.The Weld area is as strong as the pipe’s steel itself; hence bending job (up to 90 degrees for 20mm and 25mm size) can be carried out as per site requirement.

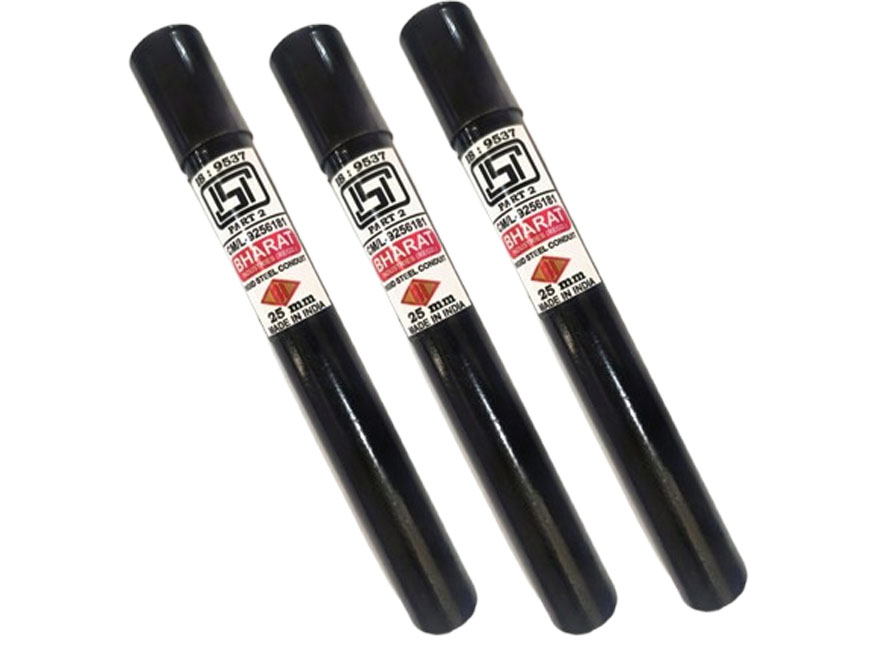

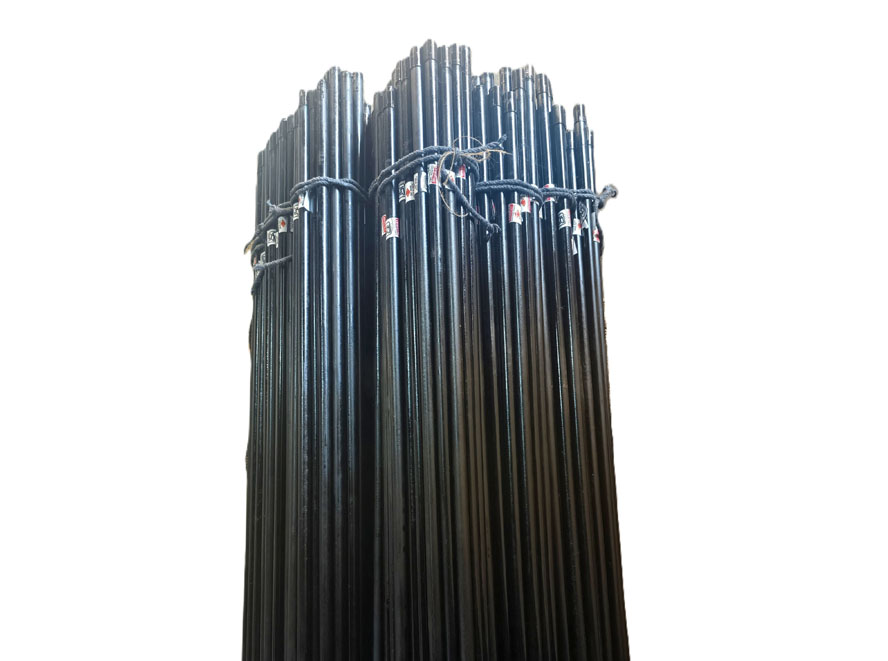

Product Image 1 Product Image 2
❮ ❯

Product Specifications

NOMINAL SIZE OF
CONDUITS (In mm) 		OUTSIDE DIAMETER
(In mm) 		TOLERANCE OF OUTSIDE
DIAMETER (In mm) 		WALL THICKNESS OF
CONDUIT PIPES (In mm)

20

20

-0.3

1.4 to 1.8

25

25

-0.4

1.4 to 1.8

32

32

-0.4

1.4 to 1.8

40

40

-0.4

1.6 to 2.2

50

50

-0.5

1.6 to 2.2

Salient Features

  • ISI Mark and Trademark (BI/BHARAT INDUSTRIES) is Embossed at intervals of every meter.
  • The Medium Protection Coating of the pipe with black stove enamel is done by dipping process, which ensures proper coating inside and outside of the pipe.
  • Suitable for applications where high resistance to impact and mechanical stress is required.
  • Each Conduit is threaded on both ends and a coupling is attached at one end for smooth installation.
  • Suitable for indoors, concealed or underground installations.
